React Native Application for Android devices
Travel Compass: Phase 2 Development
Developed an Android application using React Native. The goal was to build the front end based on the Design from Phase 1.
- Deliverables:
- Project's repository.
- Role:
- Front-end Developer.
- Tools:
- The codebase was built in Next.js with React Native.
- Introduction
- Navigation Set-up and Screens
- Data File
- Screens Content
- Theme and Styles
- Splash Screen and Icons
- Final Result
- Learn more
Introduction
After the Design Phase was completed, I wanted to expand the Travel Compass Project by taking the high-fidelity mockups into a native application. I developed an Android application using React Native, Expo and Android Studio as a mobile emulator.
Travel Compass is a travel management application. Its main purpose is to serve as an information hub where users can store all the information related to a given trip, like flight information, accommodation check-in and check-out dates and times, and other activities users might want to do during a holiday. It's intended for 20- to 50-year-old individuals who explicitly plan to travel for leisure at least once a year.
As a hypothetical existing user, on the Home Screen, we can see how the app would look like if we had a trip happening today and a list of any upcoming trips. By clicking on one of the Trip Overview Cards, we have access to the Trip Schedule Details.

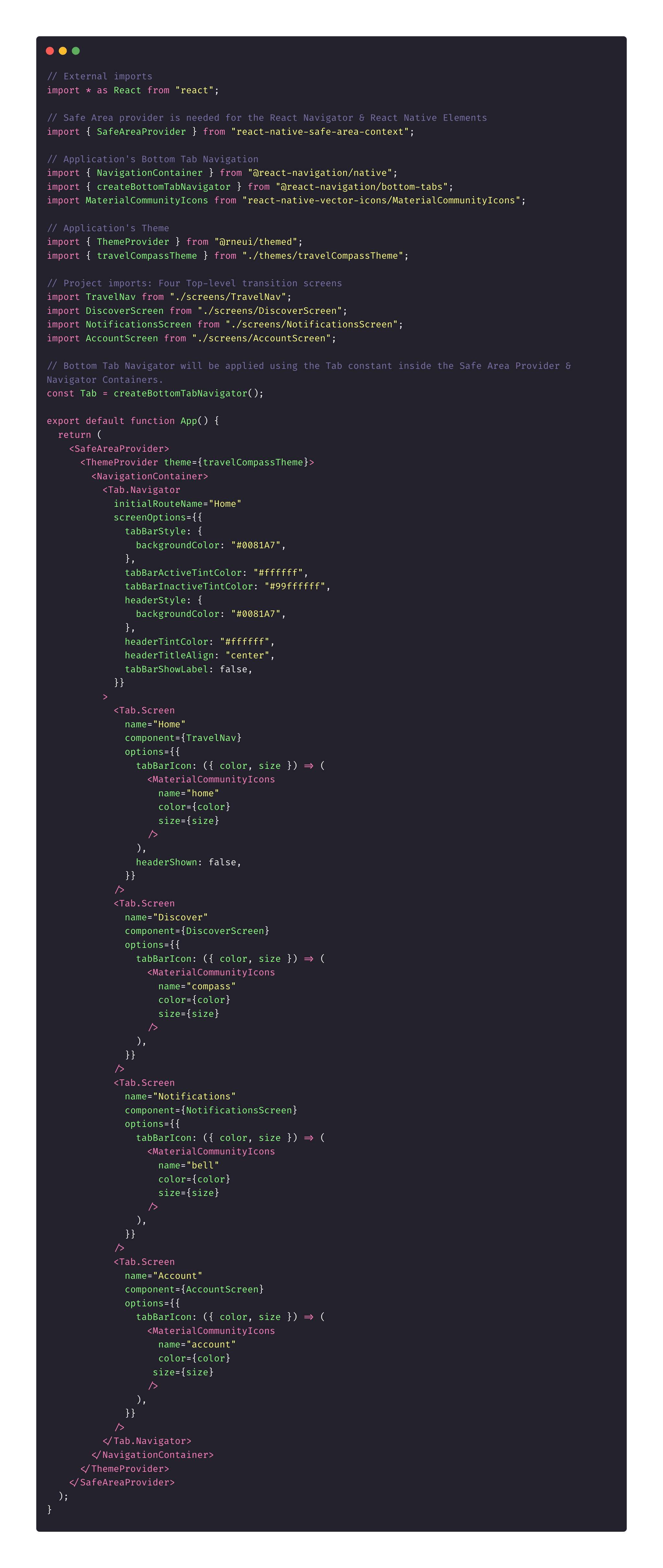

Navigation Set-up and Screens
This app uses bottom tabs navigation for its four main sections: Home, Discover, Notifications and Account. The Home Screen is making use of stacked navigation for the Add New Trip and Trip Details Screens. In order to achieve the desired navigation patterns, I'm using the "React Navigation" library, in particular the Stack and the Bottom Tabs navigators.
In order to set up the navigation patterns, I started with the Bottom Tabs navigation, to define the four main sections the application has. I created a file per screen and placed the <Navigation Container> in App.js as the root element to manage the linking of the app.
As an immediate child element, I'm placing an instance of the Bottom Tab Navigator that was assigned to a variable. Finally, the Screens are placed inside the <Tab.Navigator>, linking to the correct component. The same approach was taken for the Stacked Navigation, which takes place on the Home Screen.
Data File
One of the most important aspects of this project was deciding how the data should be structured. For this first iteration, I've created two data objects, one containing the information the user sees on the preview cards, and the second one containing an example of a trip's schedule, this information is accessed via the Current Trip Screen, to see which activities are happening on which days.
For future iterations of this project, when a back-end integration takes place, I'd most likely re-structure the data architecture to have one single array of trips and each trip would have its own schedule. For the purposes of mocking up the app's functionality, I approached the data this way, because of time constraints.

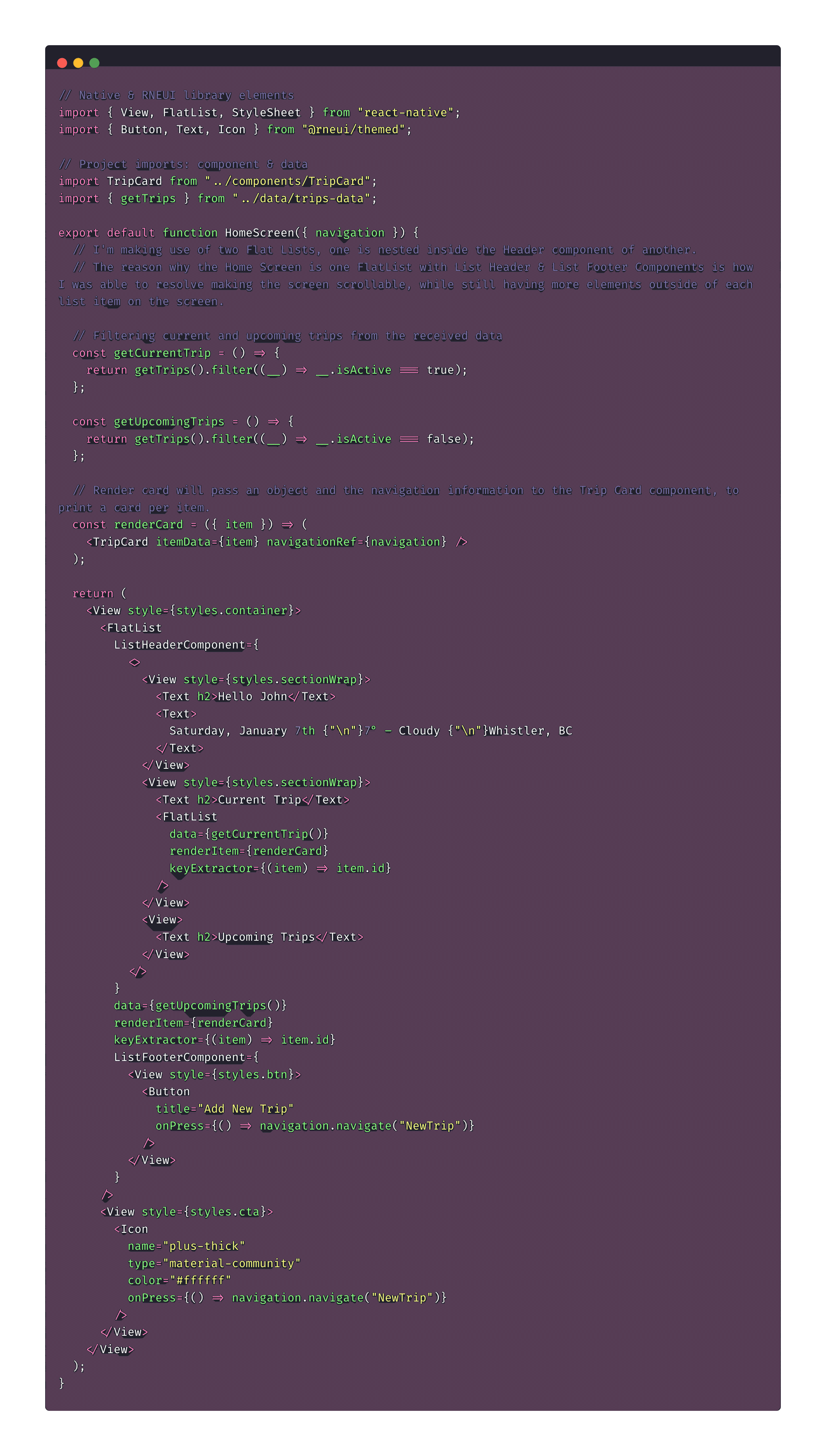

Screens Content
Once the data was in place, I started populating each Screen with the appropriate content. I'm making use of Native Components like View, Flat List and Style Sheet. I'm also integrating the "React Native Elements" library, in order to access more UI elements that I could further customize and implement theming.

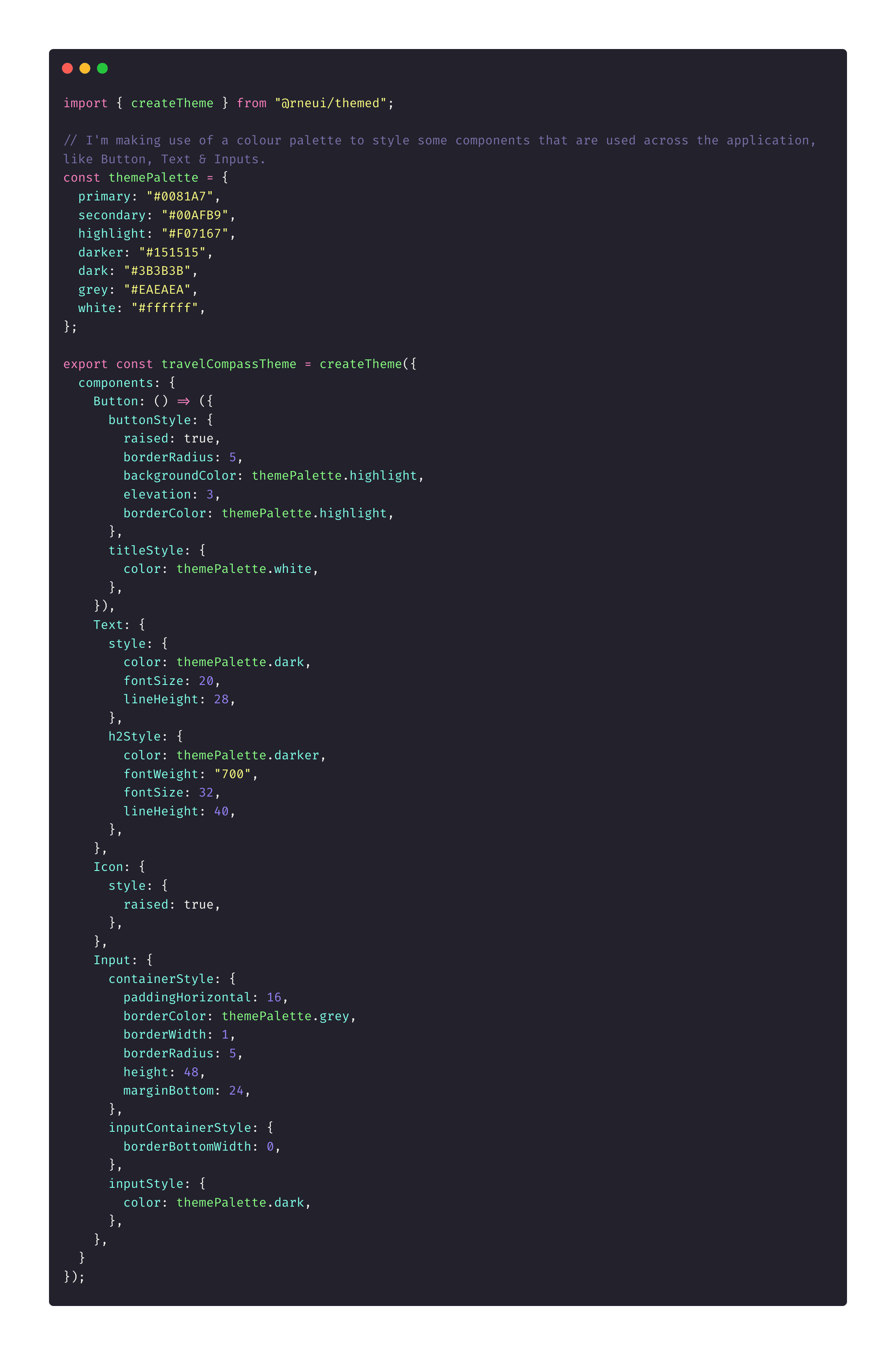

Theme and Styles
The app's design started to come together once I started implementing the RNE Theming. In order to help style components that will be used across different Screens, I've applied the styling that was defined during Phase 1 of this project to the Button, Text and Icon Components, I'm also making use of a Theme Colour Palette to have the app's palette available as a constant.
Further styling is applied using the Native Style Sheet Component on each screen according to its particular design.
Splash Screen and Icons
The application logo was implemented on a splash screen image and together with an app icon was added to the app.json file to help with branding and make for a more genuine experience when launching the app.
Final Result
I had fun building this project, it was the first time I worked with React Native and I appreciate having the experience of stepping outside of my comfort zone in terms of developing a website or application for the web. For future iterations, I would like to include a back-end integration, so the app can get tested with real data.
